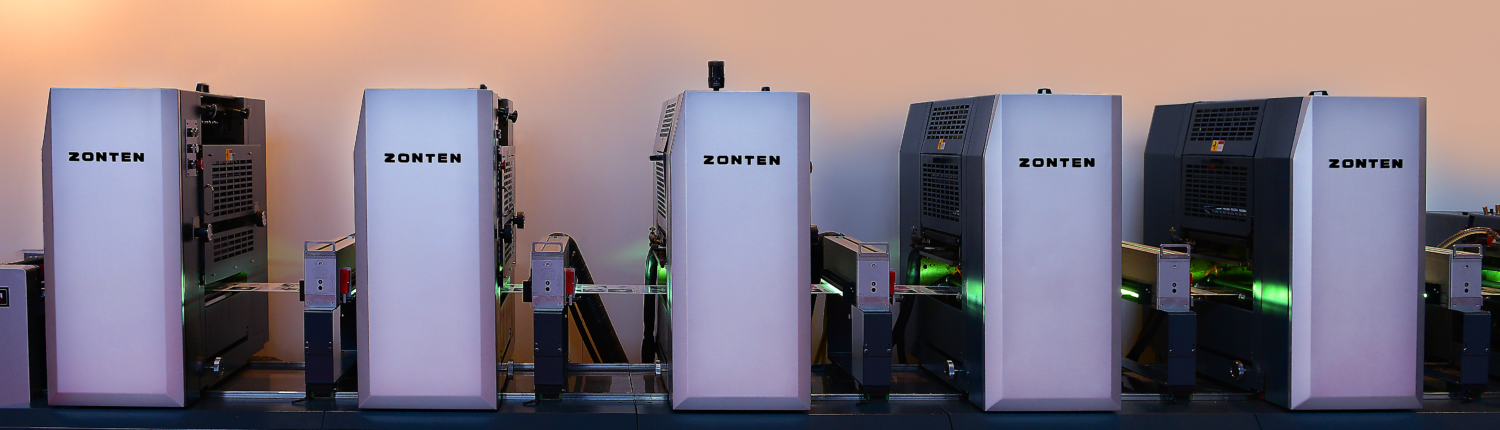

OFFSET LABEL PRESS

ZTJ-330 INTERMITTENT

Technical Specification:

Maximum printing size 320mm*320mm
Maximum diecutting size (optional): 320mm*320mm
Thickness of substrate 80-300g/m
Repeat length 50-350mm
Press speed: 30-200rpm
Motor rating 30kw/6 colors
Power three phase 380V
UV rating 4.8kw/per color
Pneumatic requirement: 7kg/cm2
Weight around 9 ton/6 colors

Capabilities:

  • Servo driven: Independent servo driven system in each unit to guarantee stable  register at high printing speed.
  • Printing unit: Use the most advanced inking system which has 23 inking rolls, four large diameter form rolls included and alcohol damping system to guarantee printing quality.
  • Pre-register system: Based upon the printing length, log data into the sliding control station, each unit will automatically be adjusted to its ready position.
  • Register system: Each printing unit can remote adjust register which includes lineal, lateral and skewing without stopping the press to save time and reduce the waste of substrate.
  • Vacuum backflow control unwind:Vaccum backflow cylinder should be able to prevent scratches on the back of P/S label during intermittent motion.
  • Joystickless:Fully automatic operation system including pressure adjustment,inking roll washup,roller impression,etc.
  • Easy to operate: Equipped with sliding touch screen control station which can be moving around to increase the efficiency of operator.
  • Printing size:Paterted technology to minimize printing size to achieve larger scale of variable size printing.
  • Control system: Apply electronic component from famous international brand to guarantee long term reliable operation.
  • Lubrication system: Centralized automatic lubrication.

Optionals:

  1. Rotary die cutting device: Use flexible die and magnetic cylinder to do any shape’s cutting.
  2. UV flexo printing station: Equipped with anilox roll to do the UV coating or white color printing on transparent material.
  3. Cold foil stamping device
  4. Laminating device:A intermittent laminator can be added before rotary diecutting during high speed intermittent printing.
  5. Automatic ink roller washup system
  6. Remote inking system
  7. Letterpress printing unit
  8. Digital printing unit: It is a colorful non-contact variable information printing system which can combine with traditional printing technology to perfect level.
  9. Rotary silk screen printing unit
